EQUIPMENT

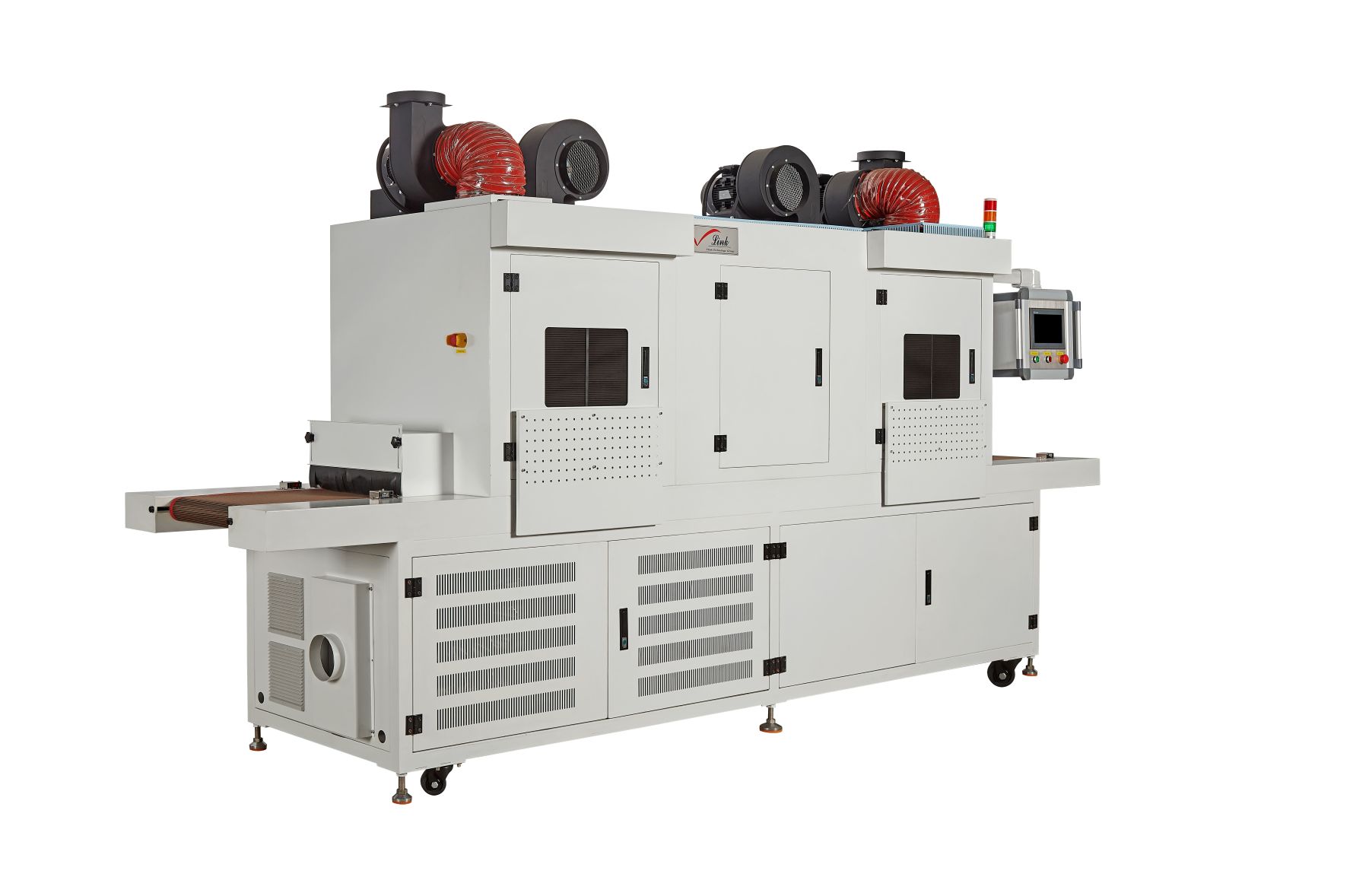

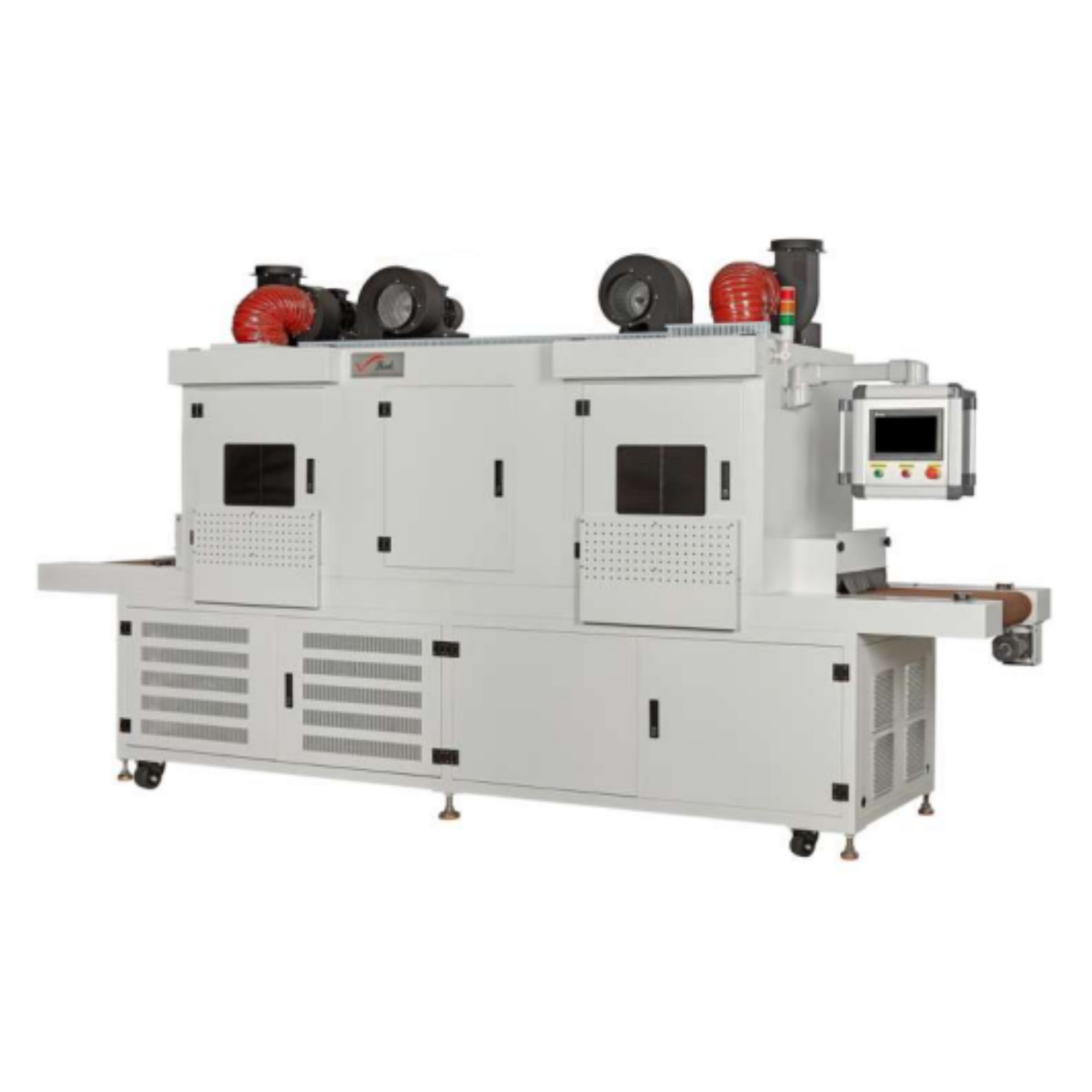

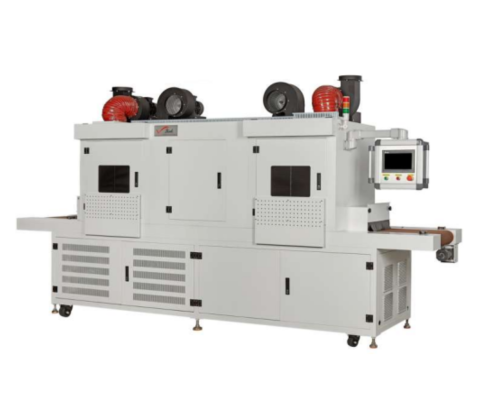

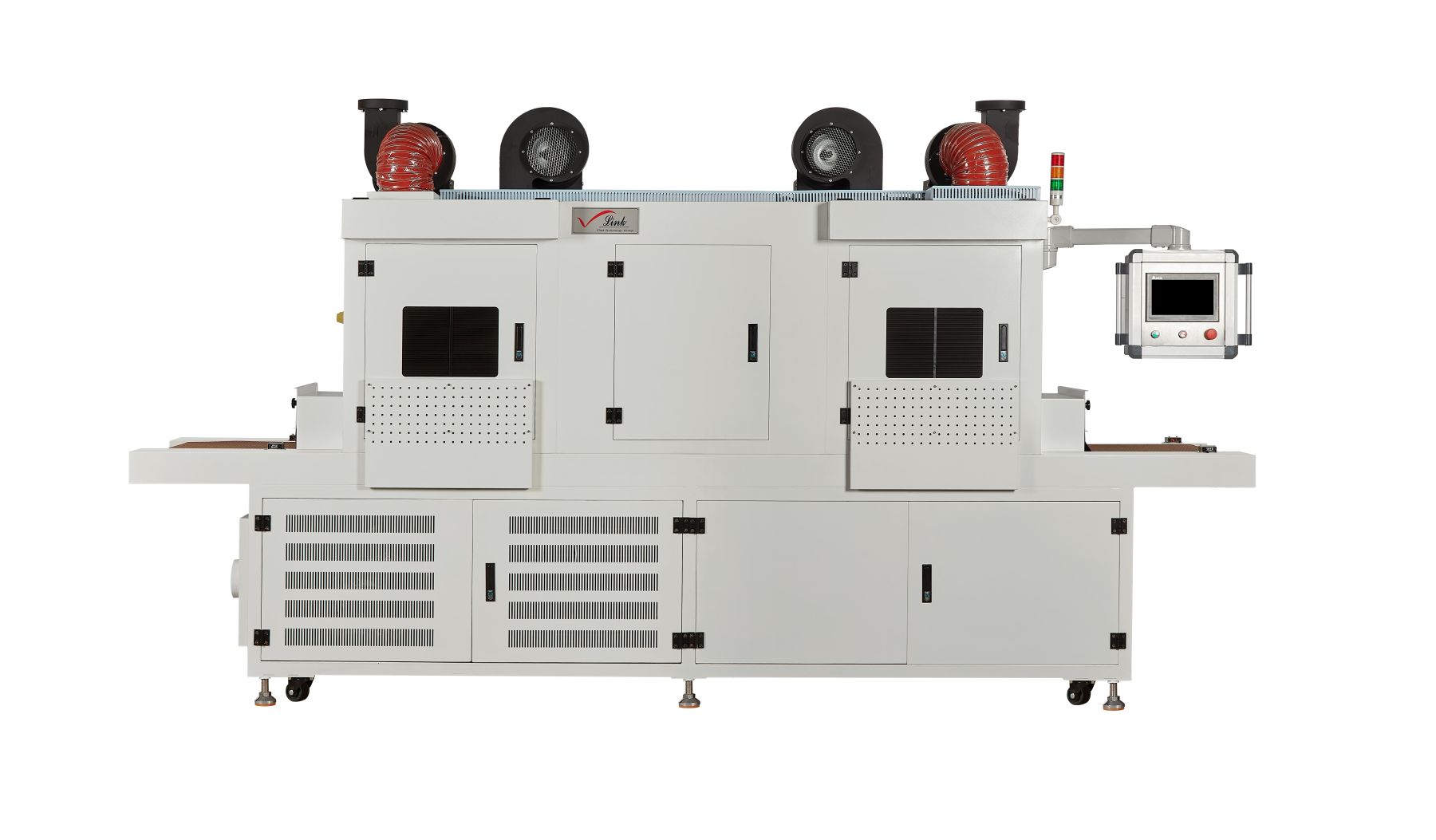

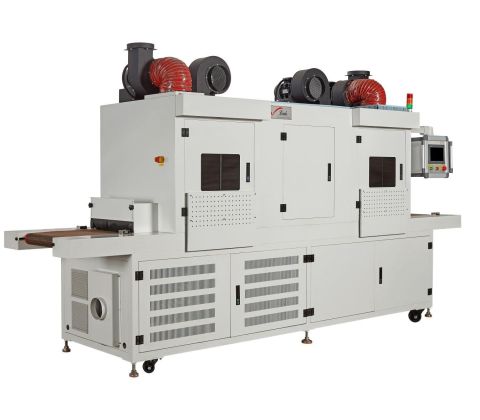

UV Curing Machine
Features:
Designed for films curing applications, our UV curing machine enhances strength, durability, and chemical resistance of coatings, and adhesives. With precise UV exposure, it ensures uniform, high-quality curing, reducing defects and improving performance. Ideal for industries requiring precision, reliability, and efficiency in their final curing stage.
Suitable Applications :
Ideal for post-molding film curing of interior and exterior parts. Extensively used in electronics, automotive, packaging, and medical fields.
Operation demo video
Video shot with YU450 model
Specifications
| Model | YU450 | YU1100 |
|---|---|---|
| Voltage (V) | 380V AC/50HZ, 380V AC/60 HZ | 380V AC/50HZ, 380V AC/60 HZ |
| Main unit dimension (mm) | 2600 x 1100 x 800 (without blower) | 2600 x 1700 x 1900 (without blower) |
| Conveyor dimension (mm) | 4200 x 1100 x 850 ±30 | 4200 x 1700 x 950 ±30 |
| Entrance width (mm) | 450 | 1100 |
| Power (W) | 24000W | 48000W |
| Conveyor speed range (mm/min) | 500 - 8000 | 500 - 8000 |
| Lamp configuration | 2 pcs UV Lamp with 2 Light Box | 2 pcs UV Lamp with 2 Light Box |
| Power supply (kW) | 6KW UV | 15.8KW UV |
| Curing energy (mj/ cm²) | 200~8000 | 200~8000 |
| Maximum irradiation intensity (mW/cm²) | 500 | 500 |
| Curing area (max) | 450 (max) | 1100 (max) |
| UV curing lamp warranty | >1000h, by Alpha-cure lamp | >1000h, by Alpha-cure lamp |
| Lamp adjustment range | 100-350mm | 100-350mm |
| UV light wavelength | 200 to 400nm, with main UV light band being 365nm | 200 to 400nm, with main UV light band being 365nm |
| Temperature control | ≤ 65° | ≤ 65° |
