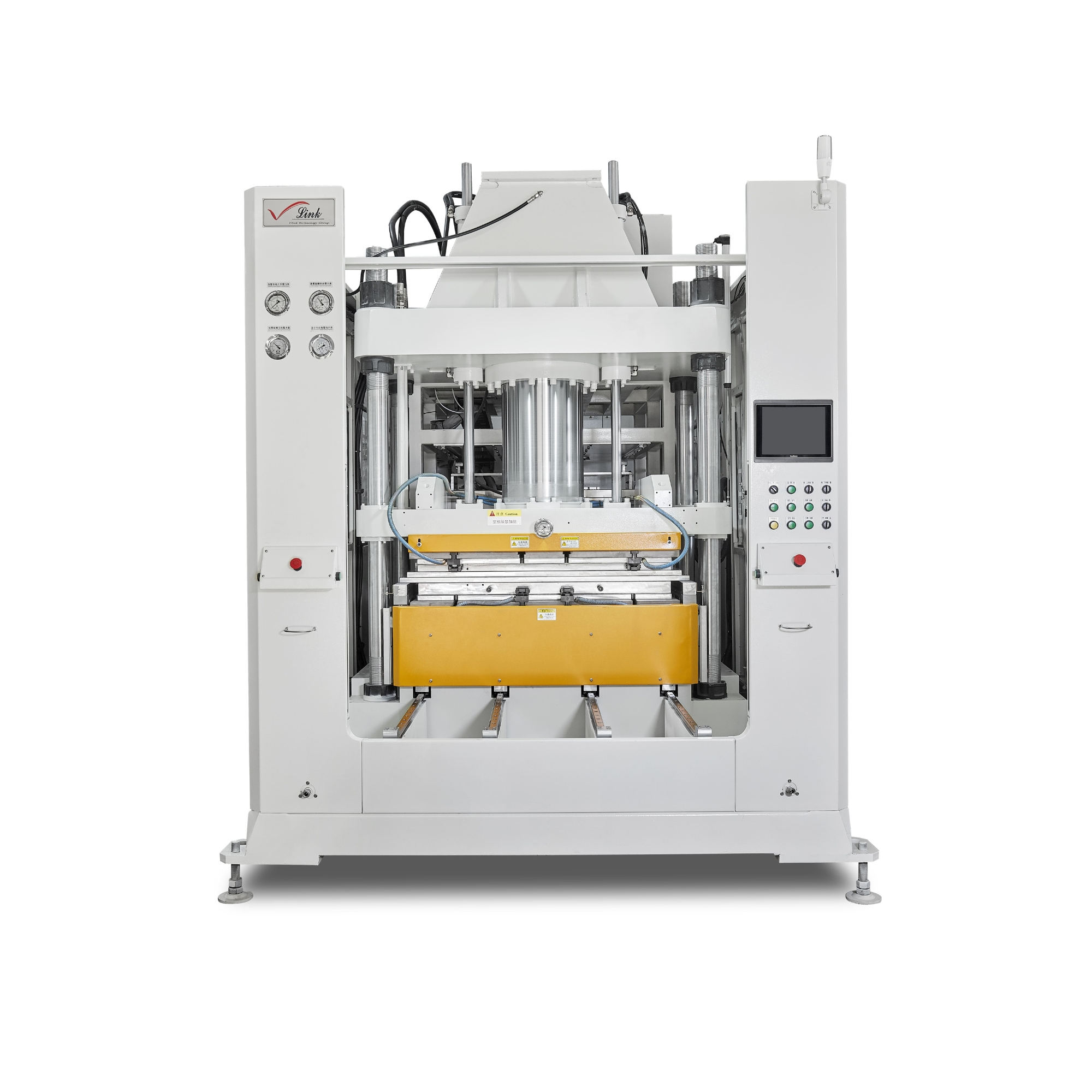

High Pressure Forming Machine
This series is designed for the rapid prototyping of PC, PC+PMMA, ABS+PMMA and other related composite film materials. It adopts the upper and lower heating mode, the far-infrared heater quickly and evenly heats the film sheet, and the rapid gas forming in and out to achieve a large working area. precise and stable positioning, rapid mass production.
Suitable Applications :
Automotive interior parts, white goods shell, notebook computer shell film and other related product shells.
Operation demo video
Video shot with HPFM-1200 model
Specifications
| Model and equipment | HPFM-800 | HPFM-1200 | HPFM-1500 | HPFM-1700 | HPFM-1800 | HPFM-2000 |
|---|---|---|---|---|---|---|
| CLAMPING FORCE (Tons) | 250 | 250 | 500（250T*2) | 500（250T*2) | 500（250T*2) | 500（250T*2) |
| MASTER CYLINDER DIAMATER (mm) | 400 | 400 | 400*2 | 400*2 | 400*2 | 400*2 |
| MOLD OPENING STROKE (mm) | 400 | 600 | 600 | 600 | 600 | 600 |
| MACHINE AREA (mm) | 800*800 | 1200*1000 | 1500*1000 | 1700*1000 | 1800*1000 | 2000*1000 |
| SERVO MOTOR (kW) | 25/11 | 25/11 | 28/11.5 | 28/11.5 | 28/11.5 | 28/11.5 |
| MOLD TEMPERATURE HEATING POWER (kW) | 19.2 | 64 | 96 | 96 | 96 | 96 |
| IR HEATING AREA (mm) | 720*720 | 1170*908 | 1563*777 | 1649*908 | 1825*777 | 1900*880 |
| UPPER CERAMIC FAR-INFRARED HEATING TEMPERATURE (MAX) | 500℃ | 500℃ | 500℃ | 500℃ | 500℃ | 500℃ |
| CERAMIC FAR-INFRARED HEATING POWER (kW) | 58 | 37.8 | 43.2 | 54.6 | 50.4 | 63 |
| LOWER ALUMINUM MID-WAVE FAR-INFRARED HEATING TEMPERATURE (MAX) | 300℃ | 300℃ | 500℃ | 300℃ | 500℃ | 300℃ |
| LOWER ALUMINUM MID-WAVE FAR-INFRARED ELECTRIC HEATING POWER (kW) | 10.8 | 30 | 43.2 | 42 | 50.4 | 48 |
| EQUIPMENT WEIGHT (KG) | 8000 | 18000 | 28000 | 28000 | 30500 | 31000 |
| DIMENSION (mm) | 1800*4100*2500 | 5380*2280*3450 | 4850*2800*3590 | 5380*2800*3590 | 4850*3200*3450 | 5750*3220*3730 |
